Turn wasted energy from your steam boilers into measurable savings with a steam boiler economizer eligible for generous Energir incentives.
Industrial boilers discharge a significant portion of their energy through flue gas. Installing a CBW boiler economizer improves your boiler room efficiency while cutting GHG emissions. This flue gas heat recovery solution captures lost energy and uses it to preheat the boiler feed water, contributing directly to your industrial decarbonization efforts.
With this proven technology, you can achieve real energy savings. Additionally, the installation of a boiler stack economizer is eligible for Energir incentives covering up to 75% of total project costs.
What Is a Boiler Economizer?

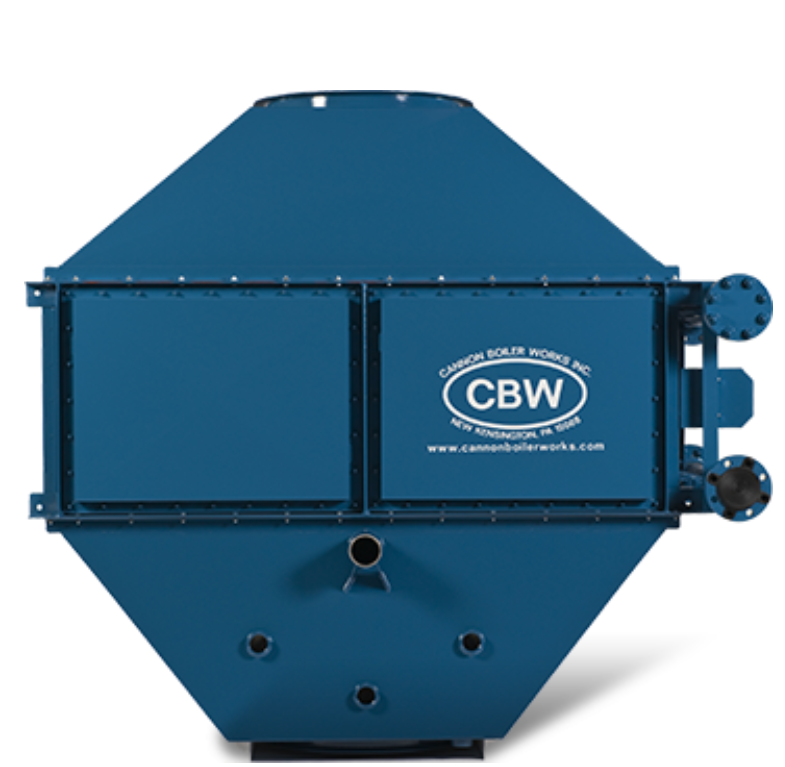

A boiler economizer is a heat exchanger installed in the flue gas duct, downstream of the boiler. The combustion gases leaving a boiler are still very hot, and that energy goes straight up the stack. The economizer intercepts it and transfers it to the feedwater before the water enters the boiler.
The principle is simple and the effect is twofold. The water arrives hotter, so the boiler has less work to do to turn it into steam and burns less gas. And the flue gas is rejected at a lower temperature, which cuts GHG emissions by the same measure.
This is why an economizer suits a new boiler and an existing fleet equally well: it does not change how the boiler operates, it recovers what the boiler rejects.
Stack, Condensing and Integral Economizers
A stack economizer connects to the flue duct of a boiler already in service. It is the most common retrofit configuration, because it requires no intervention on the boiler itself.
A condensing economizer takes recovery further by cooling the flue gas below its dew point, releasing the latent heat held in the water vapour of the combustion gases. The gain is higher, but the condensate formed is acidic: this type of unit calls for corrosion-resistant materials and suitable drainage.
A boiler with an integral economizer ships from the factory with its heat recovery unit already mounted and connected. You gain compactness and installation simplicity, at the cost of some flexibility should the boiler room change. See our natural gas steam boilers.
The right choice depends on your current stack temperature, your load profile and the space available. That is exactly what the free assessment determines.
Real Savings and Fast Payback Period
Installing a CBW economizer reduces natural gas consumption, operating costs, and GHG emissions in your boiler room. The following three examples demonstrate typical boiler economizer savings calculations and payback periods after applying Energir incentives.

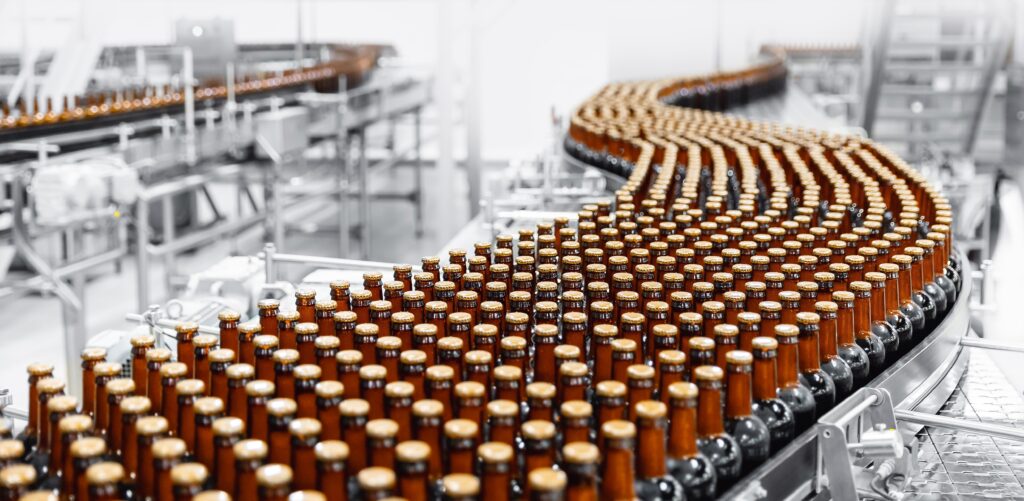

Food & Beverage Industry – 600 HP Boiler – 8,000 h/year
Gas savings: 270,836 m³/year
5-year savings: ≈ $893 750
GHG reduction: ≈ 512 tons CO₂/year
Net cost after incentives: $48,000
Payback period: 0.3 year

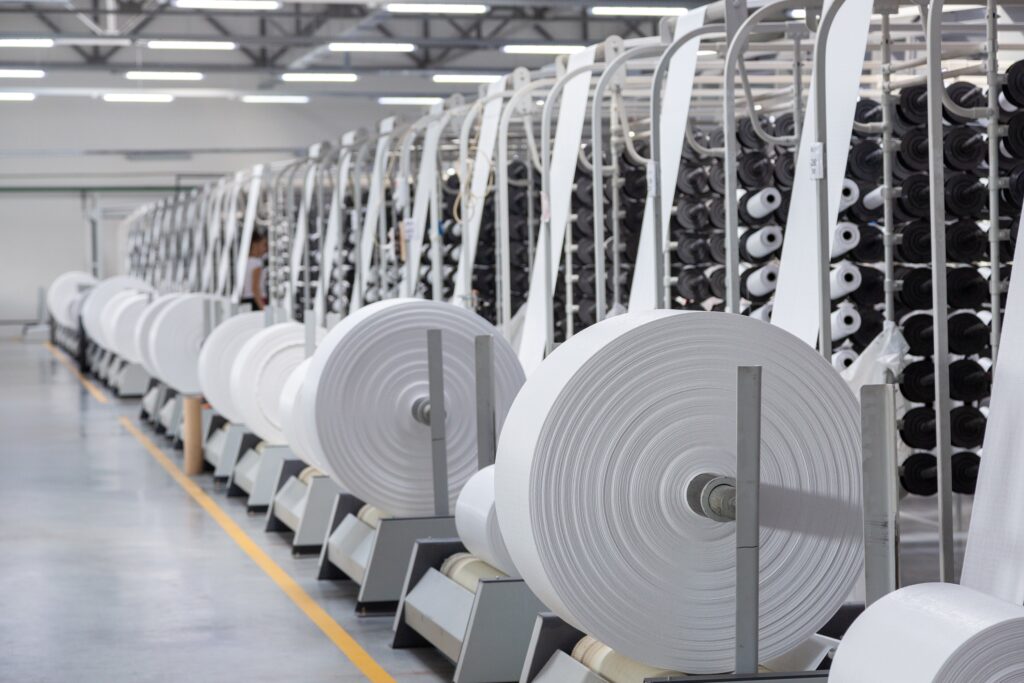

Textile Industry – 150 HP Boiler – 3,500 h/year
Gas savings: 29,623 m³/year
5-year savings: ≈ $97,750
GHG reduction: ≈ 56 tons CO₂/year
Net cost after incentives: $55,000
Payback period: 2.8 years

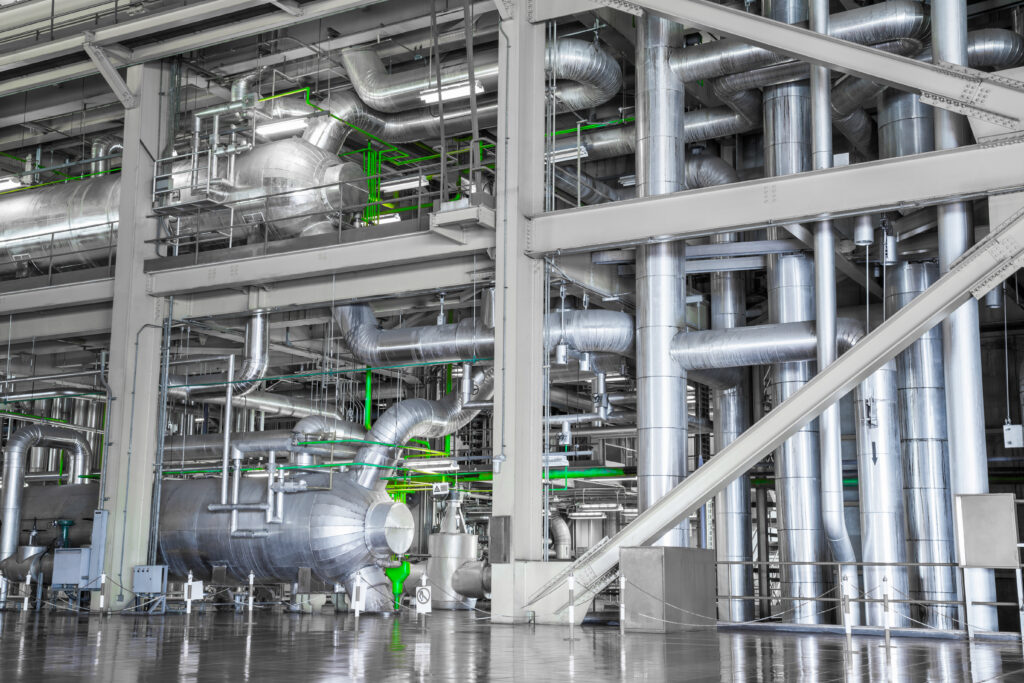

Chemical Industry – 250 HP Boiler – 5,000 h/year
Gas savings: 70,530 m³/year
5-year savings: ≈ $232,750
GHG reduction: ≈ 133 tons CO₂/year
Net cost after incentives: $44,000
Payback period: 0.9 year
🌟 Each cubic meter of natural gas saved today will be worth nearly twice as much by 2030. Installing a CBW boiler economizer now protects you from predictable energy price increases.
Free Boiler Room Assessment – with Detailed Savings Report
A well-sized project delivers an ultra-fast payback while significantly reducing your energy bill and GHG emissions.
Contact our team today: the detailed analysis required by Energir is offered free of charge, along with a custom savings estimation for your boiler room.
